- Item Code: CF8M013
- Bore Type: Full Bore
- Pressure Rating: CL-800
- Testing Standard: API-598, BSEN 12266 Part-1
- Size Range: 15mm to 50mm
- Product Standard: BSEN ISO 17292
Suitable For
Material Specification
| S. No. | PART NAME | MATERIAL | SPECIFICATION |
|---|---|---|---|
| 1 | BODY | STAINLESS STEEL | ASTM A351 Gr.CF8M |
| 2 | BODY SEAL | PTFE/GRAFOIL | |
| 3 | PIPE CONNECTOR | STAINLESS STEEL | ASTM A351 Gr.CF8M |
| 4 | BALL | STAINLESS STEEL | ASTM A351 Gr.CF8M |
| 5 | SEAT | PTFE | |
| 6 | STEM SEAL | PTFE / GRAFOIL | |
| 7 | GLAND SEAL | PTFE / GRAFOIL | |
| 8 | GLAND | STAINLESS STEEL | ASTM A276 TYPE 316 |
| 9 | BELLEVILLE WASHER | SPRING STEEL | BS970EN 42J |
| 10 | STEM NUT | STAINLESS STEEL | ASTM A276 TYPE 316 |
| 11 | LEVER(ZINC PLATED) | CARBON STEEL PLATE WITH PLASTIC SLEEVE | |
| 12 | LEVER NUT | STAINLESS STEEL | ASTM A276 TYPE 304 |
| 13 | STEM | STAINLESS STEEL | ASTM A276 TYPE 304 |
| 14 | LOCKING WASHER | CARBON STEEL | IS2062 |
| 15 | BOLTS | ALLOY STEEL | IS 1367 CL-10.9 |
| 16 | NUTS | H.T. STEEL | IS 1367 CL-10.9 |
| 17 | ANTISTATIC BALL | STAINLESS STEEL | SS TYPE 316 |
| 18 | SPRING | STAINLESS STEEL | SS TYPE 316 |
Dimensional Data
| SIZE (mm) | 15 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| L | 70 | 85 | 95 | 110 | 120 |
| ∅b | 12.5 | 19 | 25 | 32 | 40 |
| ~H | 82 | 103 | 112 | 118 | 122 |
| C | 15 | 18 | 19 | 20 | 20 |
| Rc | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" |
| ~LL | 165 | 180 | 180 | 230 | 272 |
| ∅SW | 21.7 | 27 | 33.8 | 42.5 | 48.6 |
| D | 10 | 13 | 13 | 13 | 13 |
Principle Features
INTRODUCTION
Leader forged steel Needle (Regulating) valve offers renewable seat by default with rising stem and hand wheel. It blocks the flow of pipeline through the rotation and lifting of hand wheel as well as stem to drive the lift of disc. There is no relative friction between disc and body sealing surface. The Needle (Regulating) valves have the feature of long service life for opening and closing and can be used as a shut-off valve for small-size pipelines.
- Design St& BSEN ISO 17292.
- Pressure Temperature Rating as per ISO 5208/ API 598.
- Sturdy design for high-pressure & temperature service.
- Three-piece constructions designed for easy online service.
- Floating Ball. line pressure forces the floating ball against the downstream seat to effect bubble-fig. sealing.
- Mirror-finished Solid Stainless Steel Ball ensures bubble-tight sealing and lower operating torques.
- Premium quality PTFE sea. to ensure bubble-tight sealing and lower operating torques
- Inbuilt antistatic mechanisms to pro.de electrical continuity
- Blowout-proof stem design.
- Fire-safe design as per API 607, features secondary metal seats act In the event of a fire. after the soft seat totally deform, the Pall moves and touches the metal seat to form a leak. tight seal.
- Screwed Female Tapper ends as per ASME B1.20.1 (NPT) / BS 21 Screwed Female Parallel ends as per ISO 228 / BS 21 available on request
- Socket-weld / Buff Welded are available on request with 100mrt Nipple on both the ends.
- Lever operated
- Valves can be offered with electrical and Pneumatic actuators on request.
TEST PRESSURE(Hydrostatic)
| Rating | CL-800 |
|---|---|
| Body (Hyd.) | 178 Bar |
| Seat (Hyd.) | 76 Bar |
| Seat (Air) | 6.9 Bar |
END CONNECTION:
- Screwed ends/ Socket Weld.

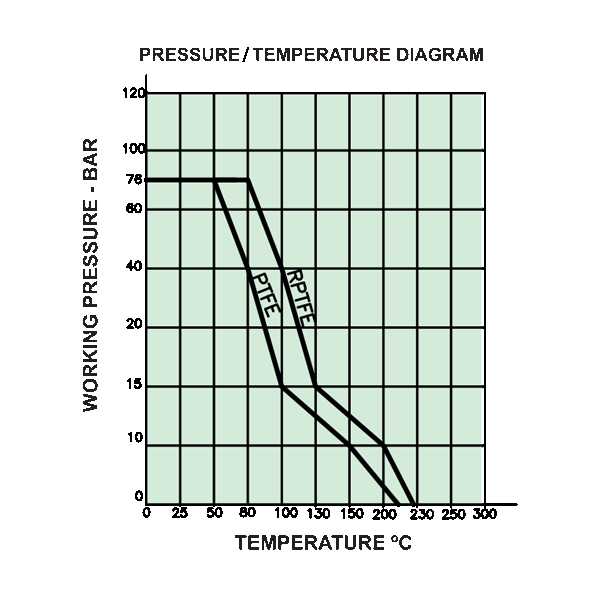

WORKING PRESSURE:
- Maximum working pressure 69 Bar @ 38° C
TEMPERATURE LIMITS:
- Maximum working temperature 175°C
