- Item Code: GM005
- Pressure Rating: CL-150
- Testing Standard: BSEN 12266 PART-1
- Size Range: 15mm to 150mm
- Product Standard: Mfg. Standard

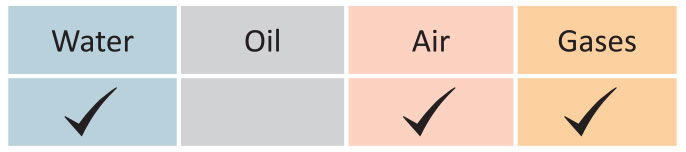

Suitable For
Material Specification

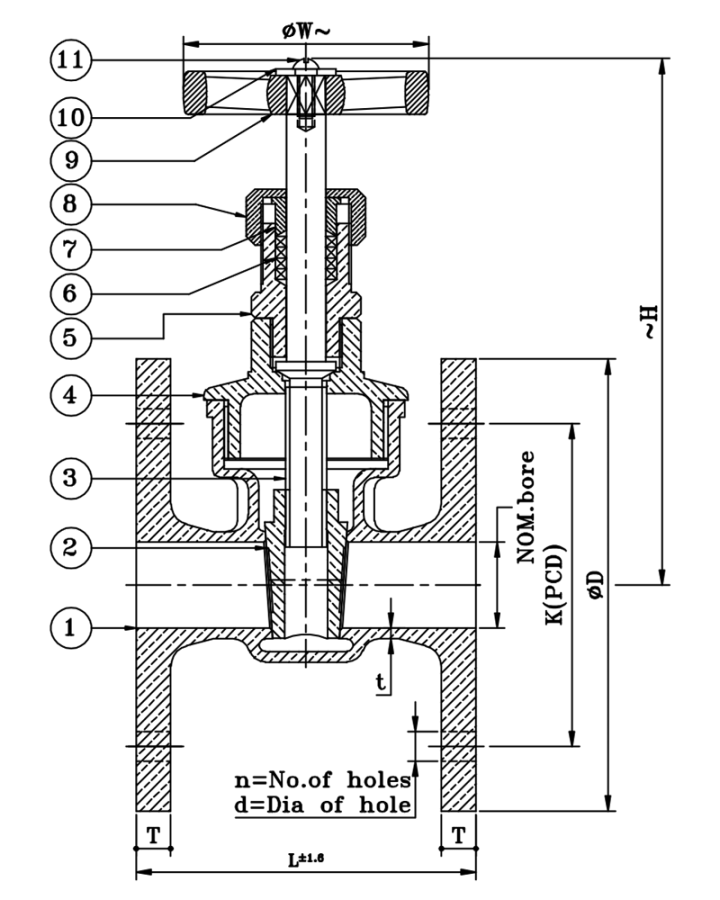

| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | BODY | GUN METAL | BS EN1982 Gr.CC491K | |
| 2 | WEDGE | GUN METAL/BRASS | BS EN1982 Gr.CC491K / IS 6912 Gr FLB | |
| 3 | STEM | BRASS ROD | BS 2872 or 2874 CZ114 | |
| 4 | BONNET | GUN METAL / BRASS | BS EN1982 Gr.CC491K / IS 6912 Gr FLB | |
| 5 | STUFFING BOX | GUN METAL / BRASS ROD | BSEN 1982 Gr.CC491K / BS 2872 or 2874 CZ114 | |
| 6 | PACKING | HEMP & JUTE | IS 5414 | |
| 7 | GLAND | GUN METAL / BRASS ROD | BSEN 1982 Gr.CC491K / BS 2872 or 2874 CZ114 | |
| 8 | GLAND NUT | GUN METAL / BRASS ROD | BSEN 1982 Gr.CC491K / BS 2872 or 2874 CZ114 | |
| 9 | HAND WHEEL | CAST IRON / STEEL (PVC COATED) | BS EN1561 Gr. 200 / ANY GRADE | |
| 10 | WASHER | CARBON STEEL | IS 2062 Gr. A | |
| 11 | SET SCREW | CARBON STEEL | BS 916 | |
Dimensional Data
| SIZE (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 72 | 76 | 90 | 100 | 110 | 117 | 142 | 153 | 181 | 232 | 274 |
| ~H | 96 | 106 | 118 | 128 | 147 | 182 | 210 | 250 | 305 | 415 | 489 |
| ∅W~ | 60 | 60 | 70 | 90 | 92 | 92 | 103 | 130 | 168 | 216 | 254 |
| ∅D | 95.3 | 101.6 | 120.7 | 133.4 | 139.7 | 165.1 | 184.2 | 203.2 | 228.6 | 279.4 | 304.8 |
| T | 7.9 | 7.9 | 9.5 | 9.5 | 11.1 | 11.1 | 12.7 | 14.3 | 17.5 | 19.1 | 22.2 |
| K | 66.7 | 73 | 87.3 | 98.4 | 104.8 | 127 | 146.1 | 165.1 | 190.5 | 235 | 260.4 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 12 |
| d | 14.3 | 14.3 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 22.2 | 22.2 |
| Item Code | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 | GM 005 |
Principle Features

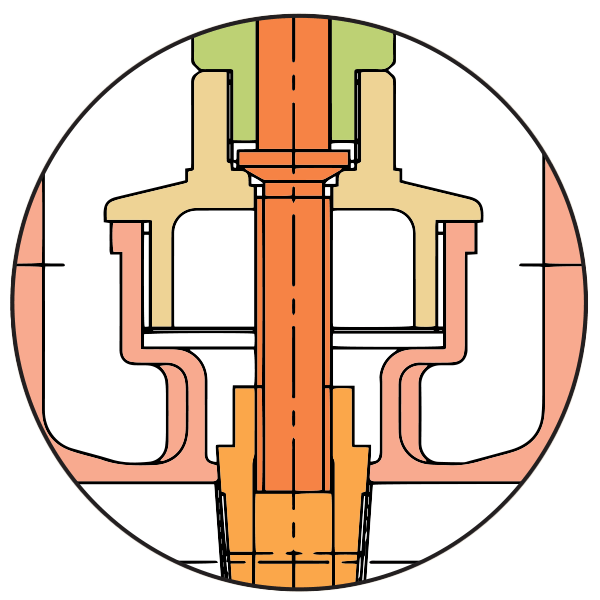

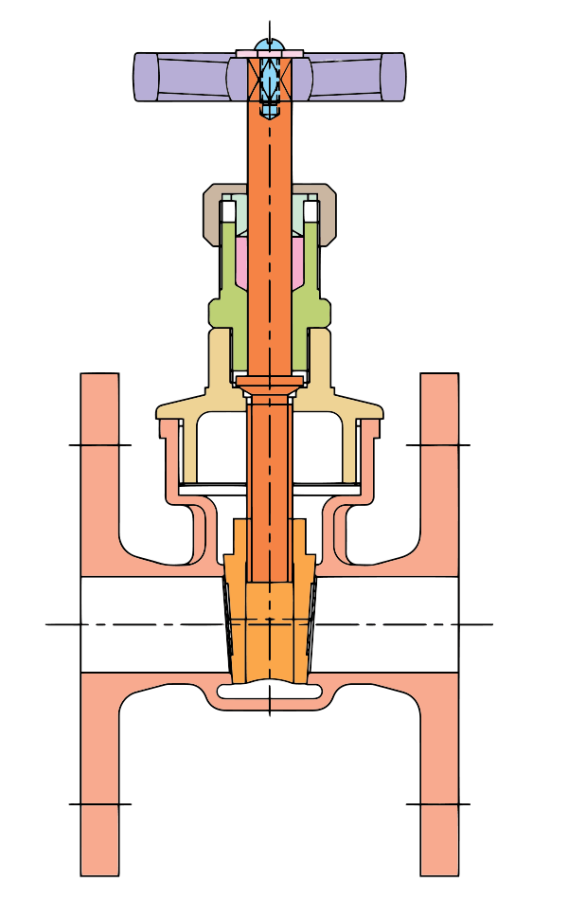

- Screwed in bonnet, inside screw non-rising stem.
- Heavy duty full bore.
- Gun Metal / Brass working parts, integral seat.
- Flanged ends as per BS:10 table 'F'.
- Extra strength of stem with high tensile brass.
- Provision for re-packing under pressure in the installed condition.
- Wear-resistant solid and long-lasting materials.
- Sheet metal handwheel offers better strength & convenient operation.
- Easy visual control of open/closed position marked on the handwheel/nameplate.
- Available with open-shut indicator & locking arrangement on request.
PRESSURE RATING: CLASS-150
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 30 BAR (g) | 22 BAR (g) |
END CONNECTION
- Flanged ends as per BS:10 table 'F'.
- Flange drilling as per other standards also available upon request with at an extra cost.
UTILISATION & SERVICE

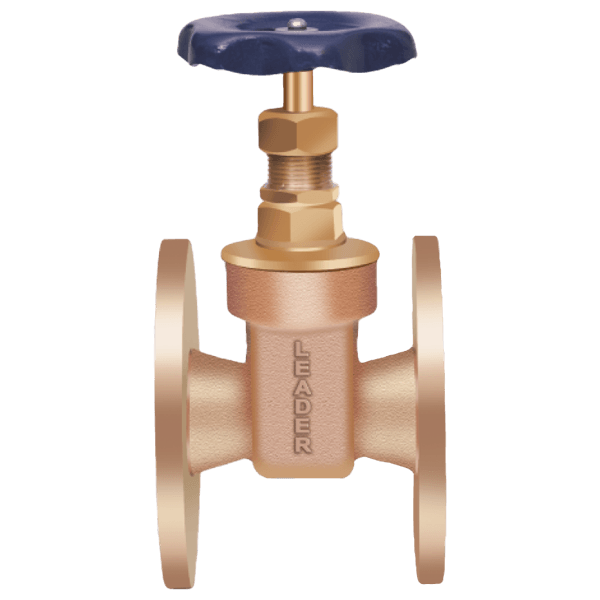

- The "LEADER" Gun Metal Gate valves are suitable for above-ground installations.
- Best suited for hot & cold water, air, neutral liquids & some gases.
WORKING PRESSURE
- Maximum Working Pressure: 20 Bar.

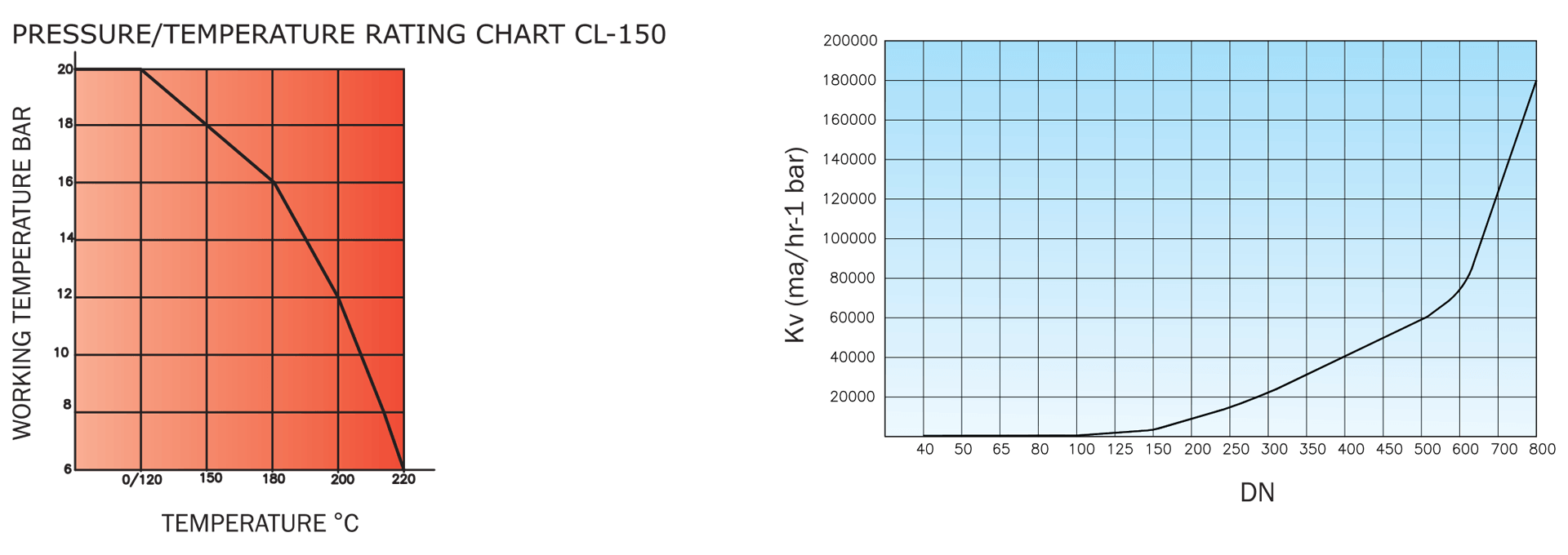

- See Pressure/Temperature Diagram.
TEMPERATURE & LIMITS
- Maximum working temperature: 225°C.
- See Pressure / Temperature Diagram.
