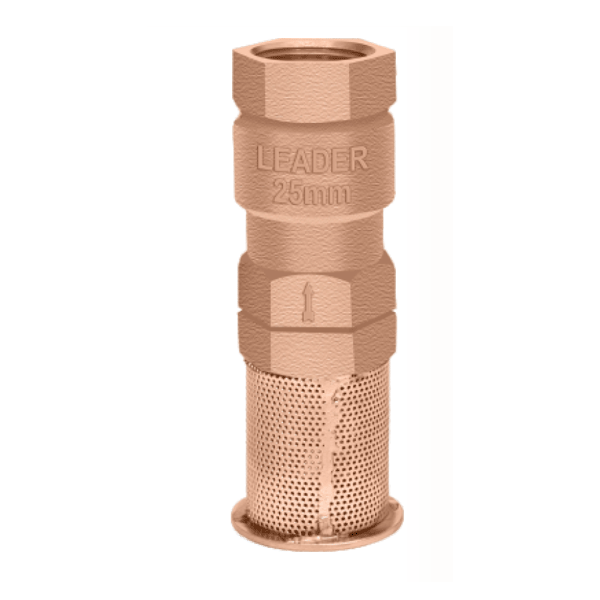

- Item Code: GM065
- Pressure Rating: PN-6
- Testing Standard: BSEN 12266 PART-1
- Size Range: 15mm to 100mm
- Product Standard: Mfg. Standard
Suitable For

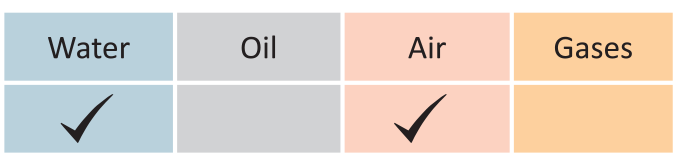

Material Specification

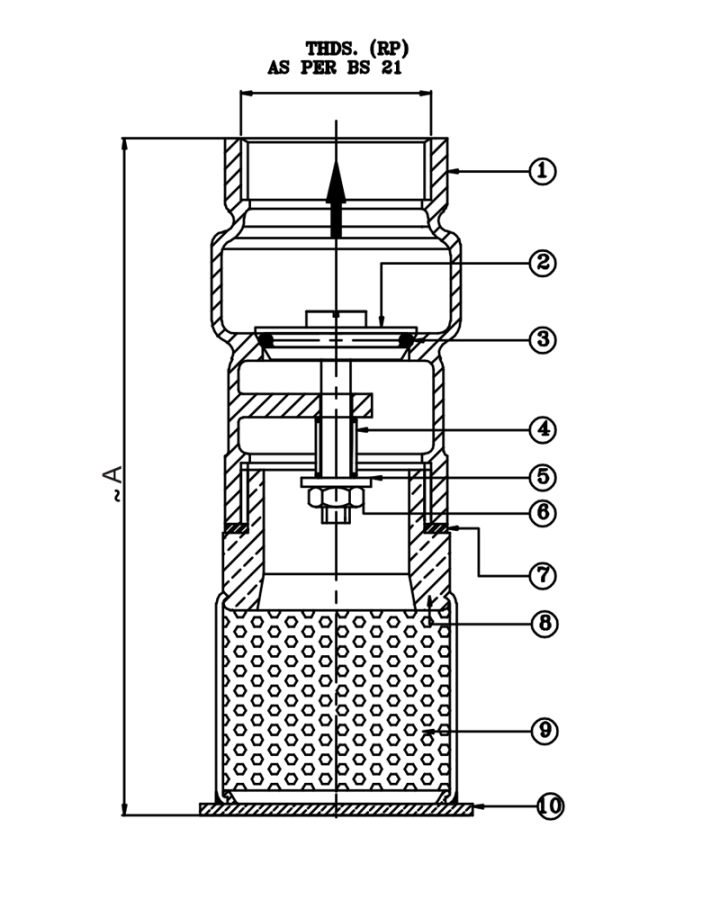

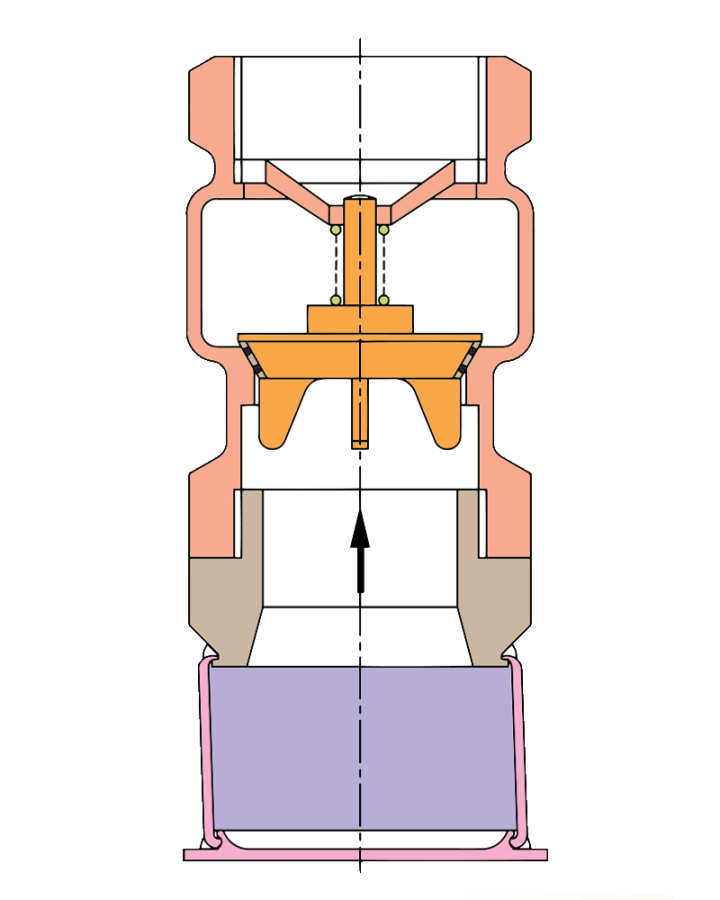

| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | BODY | GUN METAL | BSEN 1982 Gr.CC491K | |
| 2 | DISC | GUN METAL | BSEN 1982 Gr.CC491K | |
| 3 | 'O'RING | SYNTHETIC RUBBER | ||
| 4 | SPRING | PH. BRONZE - IS 7608 | ||
| 5 | WASHER | BRASS | ------- | |
| 6 | NUT | BRASS | ------- | |
| 7 | GASKET | C.N.A.F | ------- | |
| 8 | NIPPLE | GUN METAL | BSEN 1982 Gr.CC491K | |
| 9 | SCREEN | BRASS | 1mm HOLE DIA | |
| 10 | BOTTOM COVER | GUN METAL | BSEN 1982 Gr.CC491K | |
Dimensional Data
| SIZE (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ~A | 110 | 130 | 140 | 180 | 185 | 205 | 215 | 245 | 290 | 410 | 495 |
| Rp | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" |
| Approx. Wt. | 0.290 | 0.500 | 0.700 | 1.165 | 1.380 | 2.050 | 3.680 | 4.955 | 7.500 | 15.000 | 22.000 |
| Item Code | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 | GM 065 |

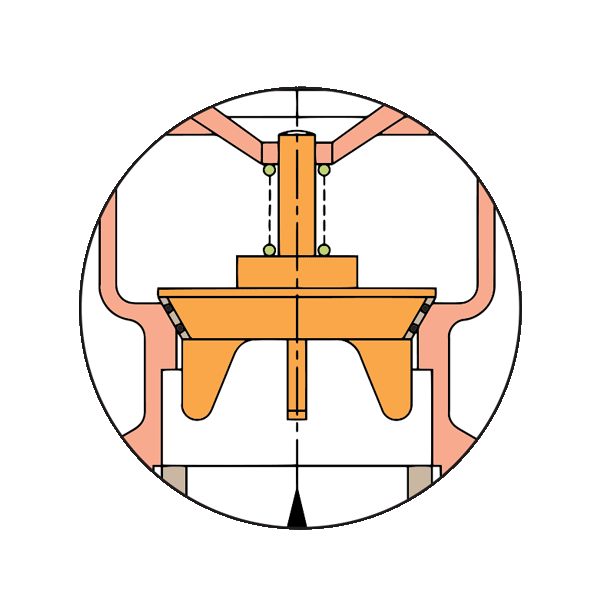

Principle Features
- Prevent water from flowing back down the pipe.
- Brass Strainer having 1mm Dia. Perforation.
- Resilient seat ensures zero leakage at low pressure.
- Lowest possible pressure drop across the valves.
- Lower head loss-high discharge, reduced pumping time- All leading to Energy Saving.
- Screwed female BSP parallel threads to BS21 / IS:554.
- Spring loaded design allows installation in both horizontal & vertical positions.
PRESSURE RATING: PN-6
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 9 BAR (g) | 6.6 BAR (g) |
END CONNECTION
- Screwed female BSP parallel threads to BS21 / IS:554.
- Taper Threads available only upon request.
UTILISATION & SERVICE
- “LEADER” Gun Metal Foot Valves are suitable for both above & underground installations.
- Best suited for potable water, treated fresh water, Raw water, Slurry, Waste water, Viscous liquids etc.
WORKING PRESSURE
- Maximum Working Pressure: 6 Bar.

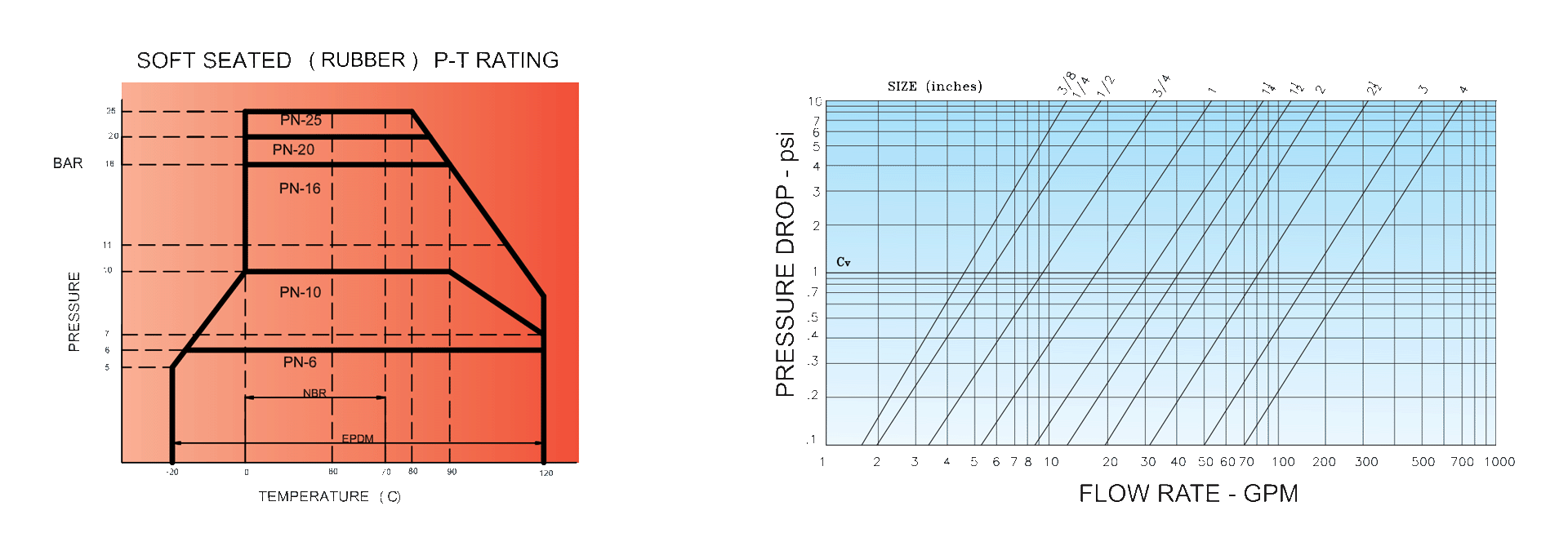

- See Pressure/Temperature Diagram.
TEMPERATURE LIMITS
- Maximum working temperature: 100°C.
- See Pressure / Temperature Diagram.
