- Item Code: GM066
- Pressure Rating: PN-10
- Testing Standard: BSEN 12266 PART-1
- Size Range: 15mm to 100mm
- Product Standard: Mfg. Standard

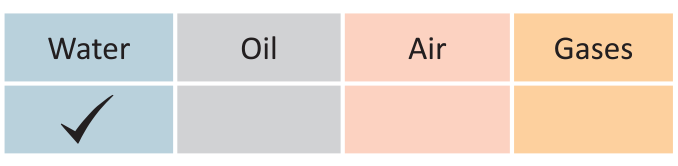

Suitable For

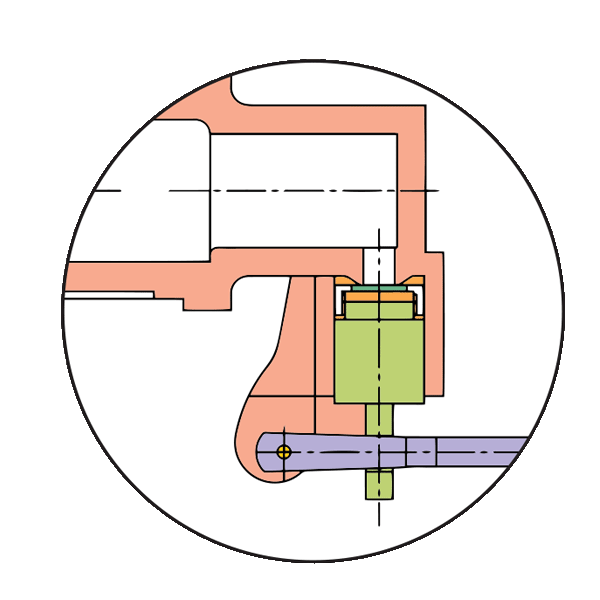

Material Specification
| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | BODY | GUN METAL | BSEN 1982 Gr.CC491K | |
| 2 | WASHER | NITRILE RUBBER | BS 1982 Gr.BA70 | |
| 3 | PISTON CAP | GUN METAL | BSEN 1982 Gr.CC491K | |
| 4 | PISTON | GUN METAL | BSEN 1982 Gr.CC491K | |
| 5 | SPLIT PIN | Ph.BRONZE | BS 2873 Gr.PB102 | |
| 6 | LEVER | BRASS ROD | BS 2872 or 2874 CZ114 | |
| 7 | BALL CAP | GUN METAL | BSEN 1982 Gr.CC491K | |
| 8 | BALL | HDPF COPPER | PEBW A 50 T 090 OF IS 7328-92 | |

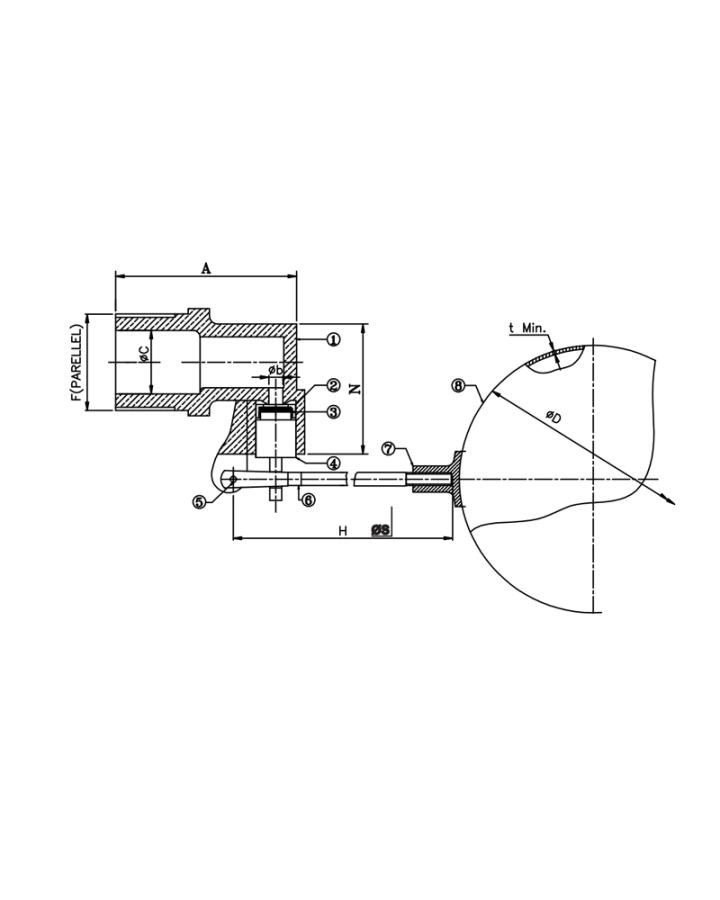

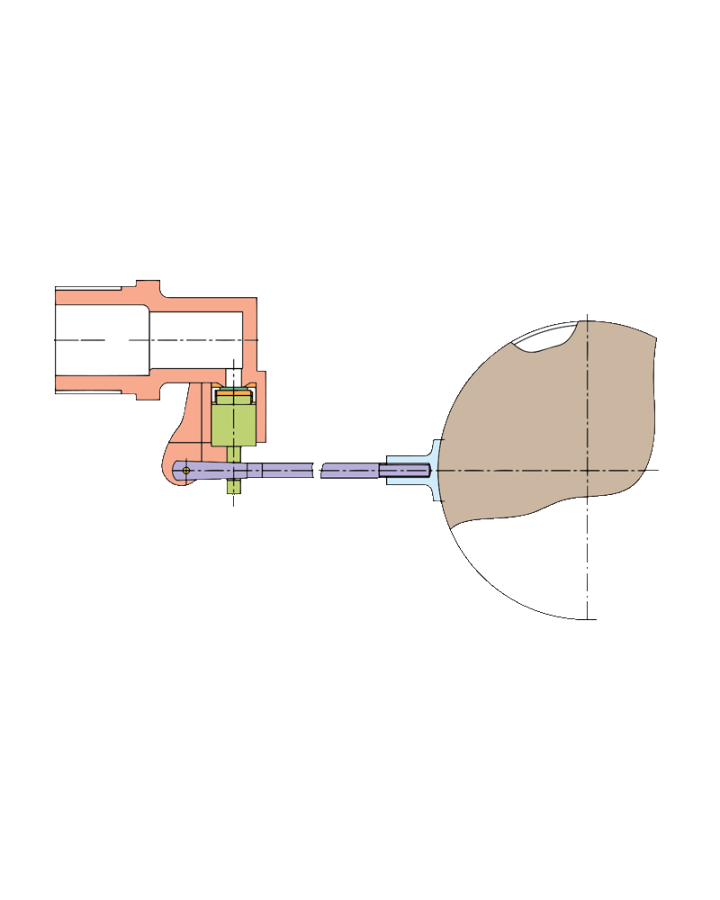

Dimensional Data
| SIZE (mm) | A | ∅C | F | H | N | ∅S | ∅b | ∅D±2.5 | FOR HDPE | Item Code |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 78 | 12.5 | 1/2" | 222 | 40 | 6.3 | 5.5 | 127 | 1.5 | GM 066 |
| 20 | 80 | 19 | 3/4" | 330 | 45 | 6.3 | 6.5 | 152 | 2 | GM 066 |
| 25 | 81 | 25.4 | 1" | 406 | 60 | 8 | 7.5 | 200 | 2.5 | GM 066 |
| 32 | 114 | 32 | 1 1/4" | 571 | 76 | 9.5 | 8.5 | 200 | 2.5 | GM 066 |
| 40 | 114 | 38 | 1 1/2" | 571 | 80 | 9.5 | 9.5 | 200 | 2.5 | GM 066 |
| 50 | 148 | 47.5 | 2" | 736 | 97 | 10 | 10.5 | 200 | 2.5 | GM 066 |
| 65 | 154 | 62 | 2 1/2" | 1480 | 117 | 15 | 12 | 250 | 2.5 | GM 066 |
| 80 | 185 | 74 | 3" | 1629.5 | 140 | 20 | 14 | 250 | 2.5 | GM 066 |
| 100 | 185 | 100 | 4" | 1829.5 | 140 | 25 | 18 | 350 | 2.5 | GM 066 |
Principle Features

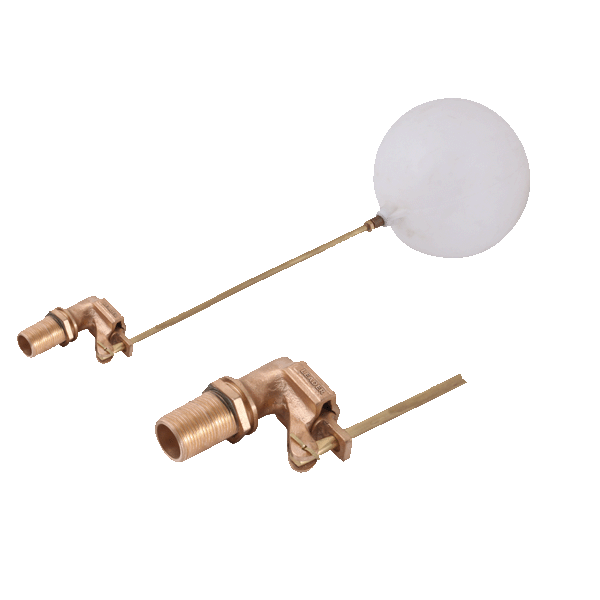

- Rough body with plastic float.
- High flow rates at low head loss.
- No jam single lever action.
- Continuously control the water level in open and closed tanks.
- Useful in a typical over-head tank of households.
- No need to monitor or control. Level control operation is automatic regulation.
- Water will get stopped once the desired level is reached, avoid overflow or over-filling.
- No electrical power is required, economical and maintenance free.
- Screwed male inlet ends as per IS:1703.
- Also available with copper float on request at an extra cost.
- PN-16 Rating Valves also available on request at an extra cost.
PRESSURE RATING: PN-10
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 15 BAR (g) | 11 BAR (g) |
END CONNECTION
- Screwed Male inlet ends as per IS:1703.
UTILISATION & SERVICE
- “LEADER" Gun Metal Float Valves are suitable for both above-ground installations.
- Best suited for potable water, treated fresh water.
WORKING PRESSURE
- Maximum Working Pressure: 10 Bar.

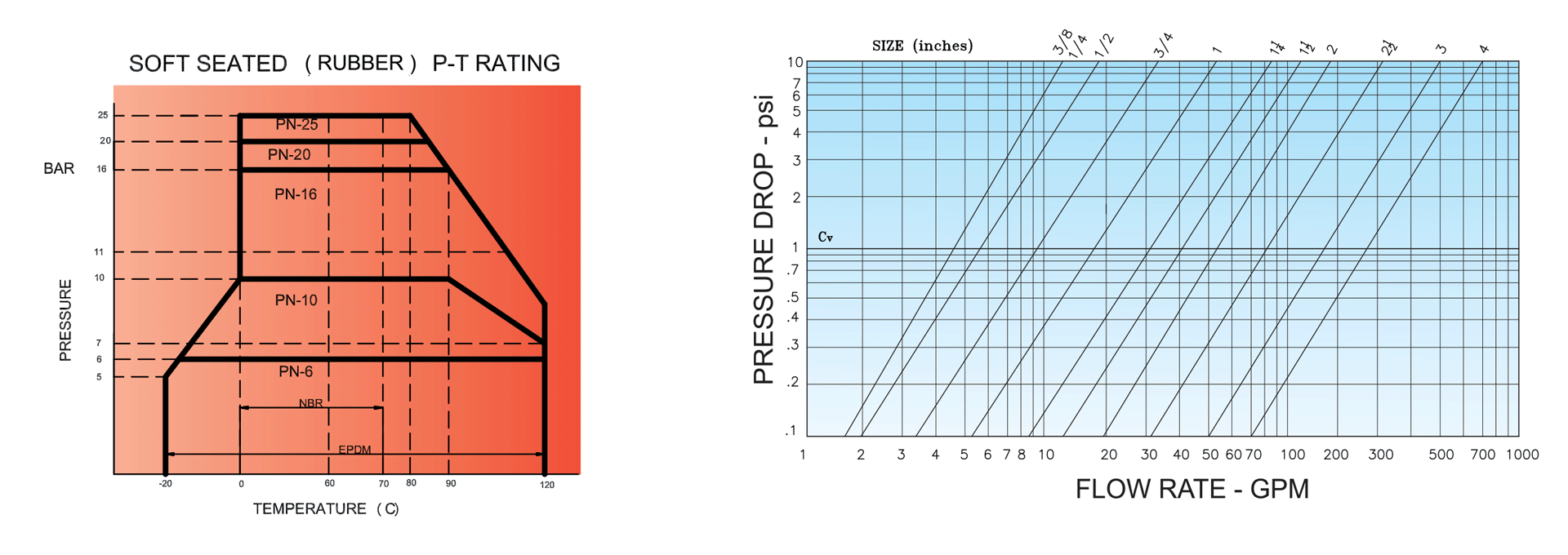

- See Pressure/Temperature Diagram.
TEMPERATURE LIMITS
- Maximum working temperature: 100°C.
- See Pressure / Temperature Diagram.
