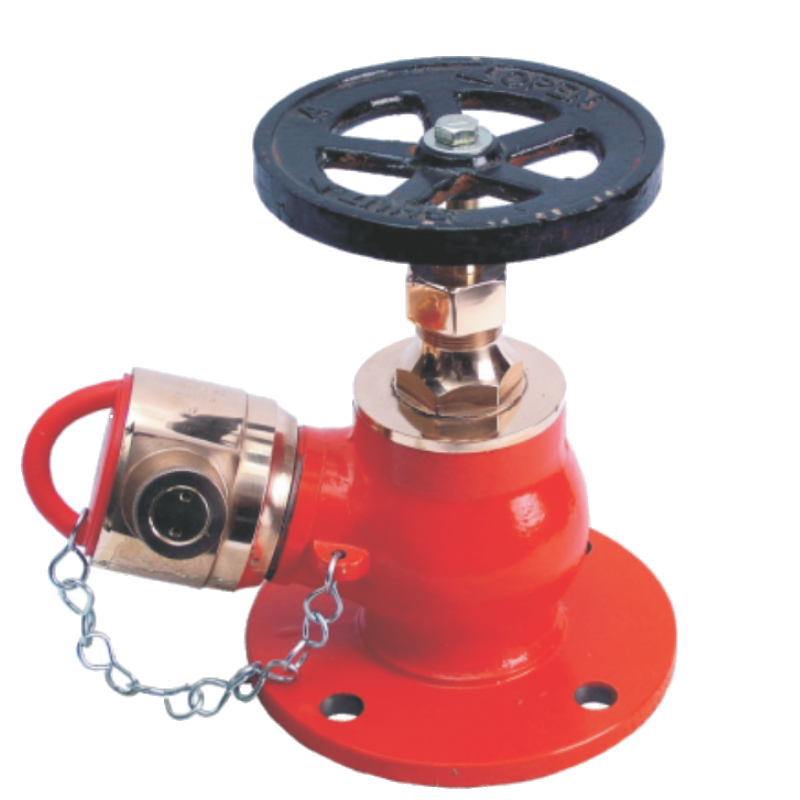

- Item Code: GM114C
- Pressure Rating: PN-16
- Testing Standard: IS 5290
- Size Range: 80mm
- Product Standard: IS 5290

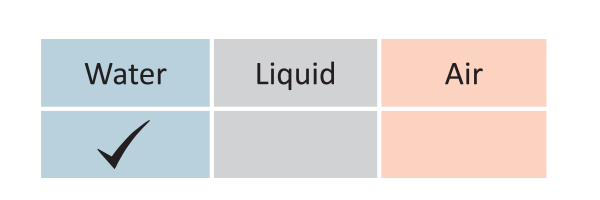

Suitable For

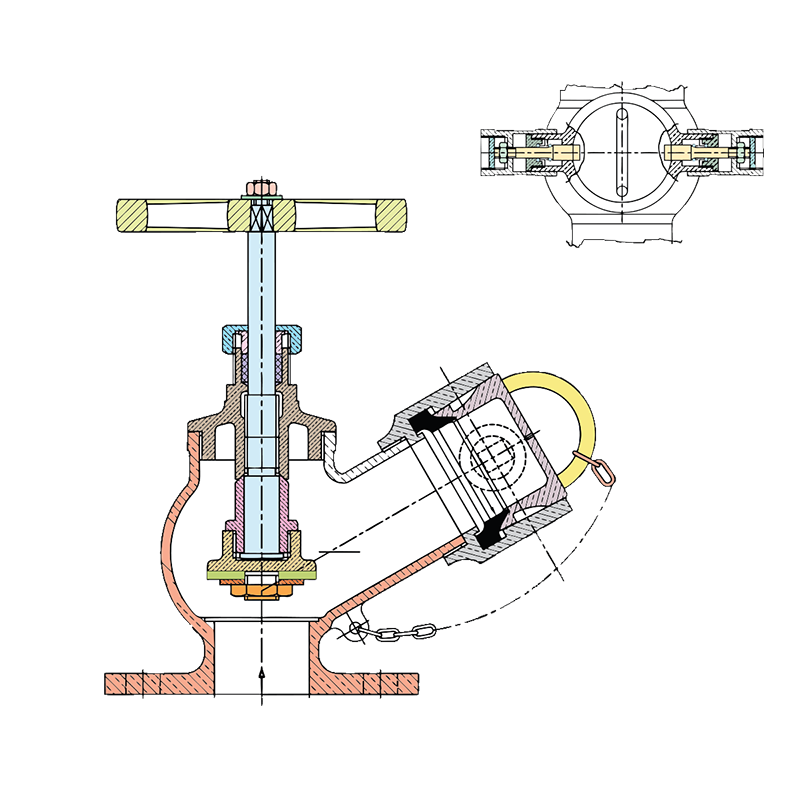

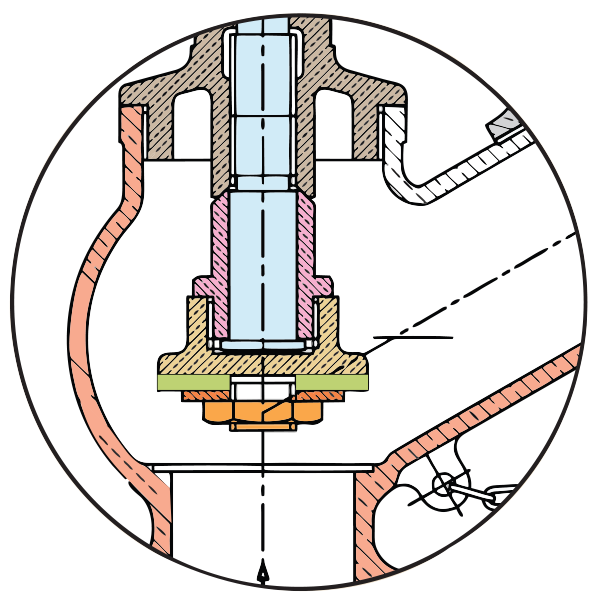

Material Specification
| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | BODY | GUN METAL | IS 318 Gr. LTB2 | |
| 2 | NUT | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 3 | WASHER | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 4 | DISC FACING | RUBBER | BS 937 | |
| 5 | DISC | GUN METAL | IS 318 Gr. LTB2 | |
| 6 | DISC STEM NUT | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 7 | STEM | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 8 | BONNET | GUN METAL | IS 318 Gr. LTB2 | |
| 9 | GLAND PACKING | P.T.F.E. | ||
| 10 | GLAND | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 11 | GLAND NUT | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 12 | HAND WHEEL | CAST IRON | IS 210 Gr. FG200 | |
| 13 | WASHER | CARBON STEEL | IS 2062 | |
| 14 | HALID WHEEL NUT | CARBON STEEL | IS 2062 | |
| 15 | CAP DISC | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 16 | NUT | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 17 | CAM TOOTH | H.T. BRASS / G.M. | IS 6912 Gr. FHTB1 / IS 318 Gr. LTB2 | |
| 18 | PULNGER PULLER | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 19 | CAP BUSH | H.T. BRASS | IS 6912 Gr. FHTB1 | |
| 20 | SPRING | PH. BRONZE | BS 2874 PB-102 | |
| 21 | INSTANTANEOUS FEMALE OUTLET | GUN METAL | IS 318 Gr. LTB2 | |
| 22 | INSTANTANEOUS CAP | PLASTIC | ----- | |
| 23 | RING GASKET | RUBBER | B.S. 937 | |
| 24 | CHAIN | MILD STEEL | ||

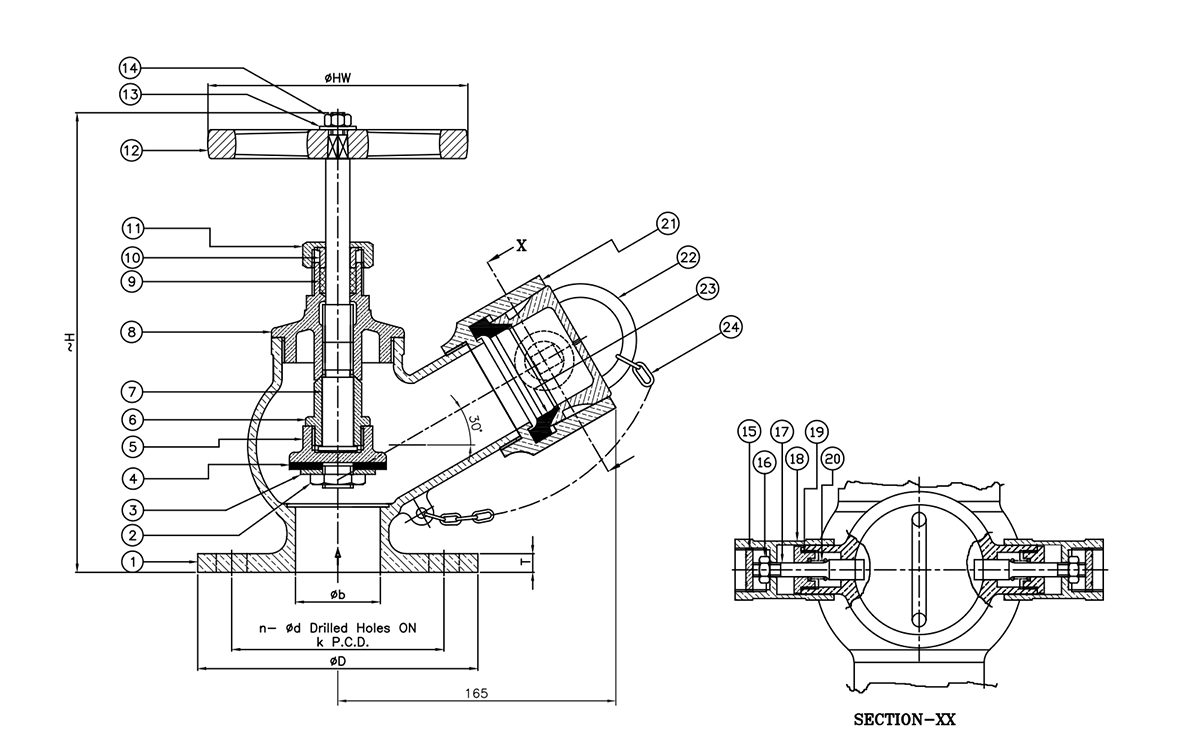

Dimensional Data
| FLANGE DETAILS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE (mm) | ∅HW | ~H | FLANGE | BOLT HOLES | |||||
| ∅D | ∅b | T | K | n | ∅d | Item Code | |||
| 80 | 142 | 225 | 200 | 74.6 | 12 | 161 | 4 | 18 | GM 114C |
Principle Features
- Design std.: IS 5290.
- Oblique pattern.
- Screwed in bonnet, rising stem.
- With cap and chain instantaneous coupling at outlet.
- Extra strength of stem with high tensile brass.
- Provision for re-packing under pressure in the installed condition.
- Inlet flanged, outlet 2-1/2" (63mm) female instantaneous coupling with chain as per IS 903 and black cap.
PRESSURE RATING: PN-16
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 21 BAR (g) | 14 BAR (g) |
END CONNECTION
- Inlet flanged, outlet 2-1/2" (63mm) female instantaneous coupling with chain as per IS 903 and black cap.
UTILISATION & SERVICE
- “LEADER" Gun Fire Hydrant Valves are suitable for above-ground installations.
- Best suited for potable water, treated fresh water.
WORKING PRESSURE
- Maximum Working Pressure: 14 Bar.
- See Pressure/Temperature Diagram.
TEMPERATURE & LIMITS
- Maximum working temperature: 100°C.
- See Pressure / Temperature Diagram.
