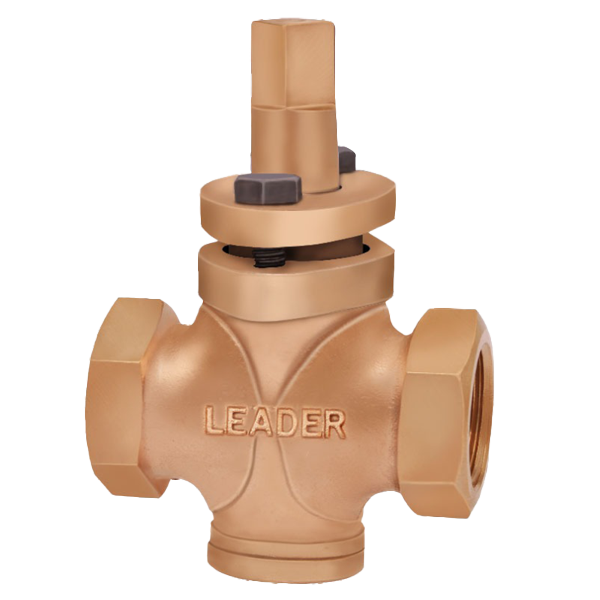

- Item Code: GM052
- Pressure Rating: PN-6
- Testing Standard: BSEN 12266 PART-1
- Size Range: 8mm to 100mm
- Product Standard: Mfg. Standard

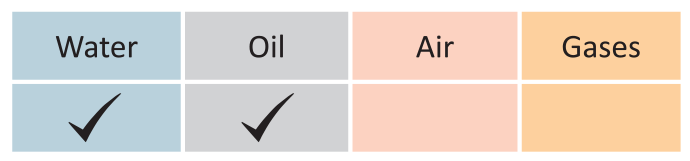

Suitable For

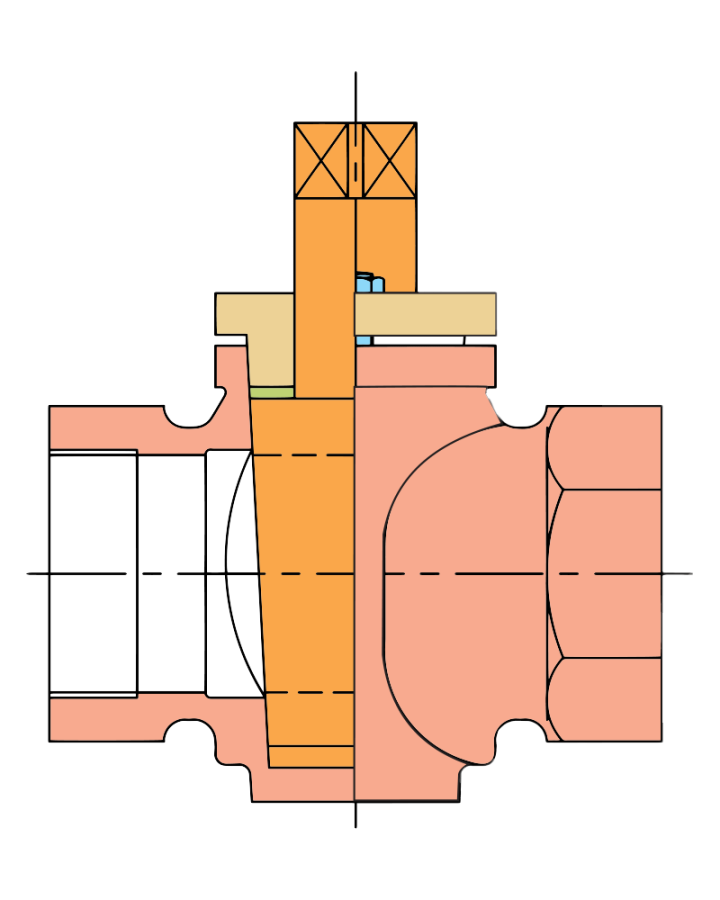

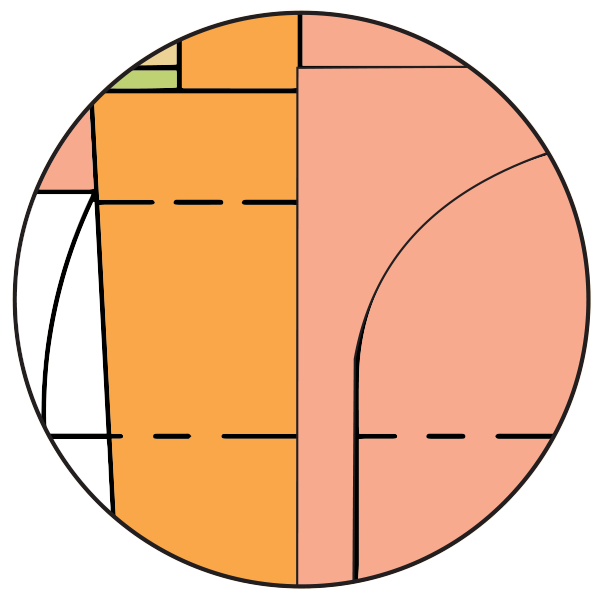

Material Specification
| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | PLUG | GUN METAL | BSEN 1982 Gr. CC491K | |
| 2 | GLAND BOLTS | CAST STEEL | BS 916 | |
| 3 | GLAND | GUN METAL | BSEN 1982 Gr. CC491K | |
| 4 | GLAND PACKING | TO SUIT WORKING CONDITION | ||
| 5 | BODY | GUN METAL | BSEN 1982 Gr. CC491K | |

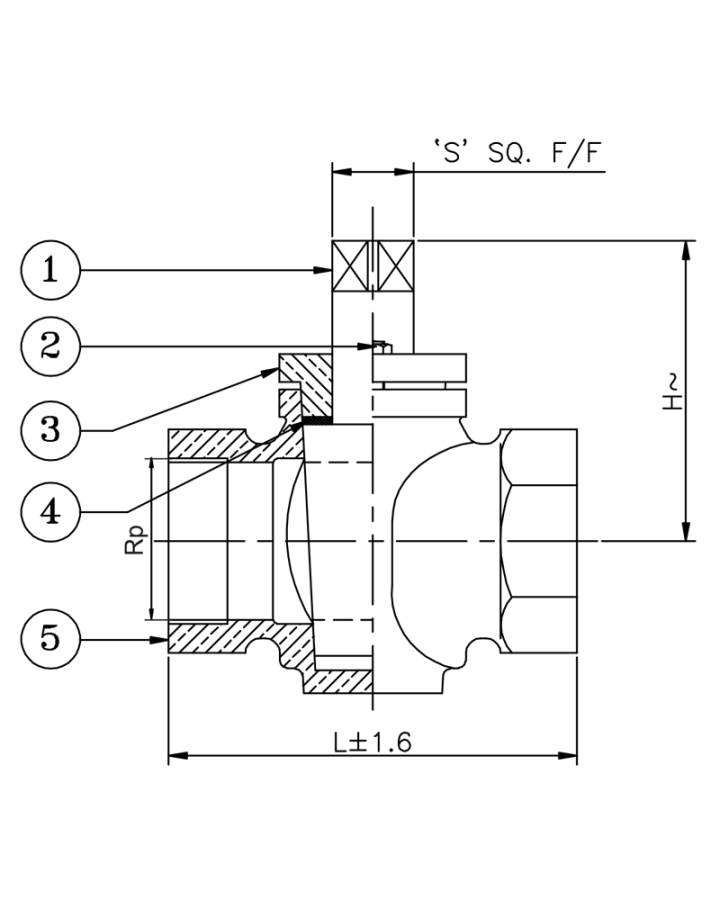

Dimensional Data
| SIZE (mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 48 | 57 | 59 | 70 | 83 | 96 | 111 | 132 | 158 | 184 | 233 |
| S | 9.5 | 11 | 11 | 12.7 | 13.5 | 16 | 19 | 22 | 32 | 35 | 46 |
| ~H | 56 | 56 | 56 | 70 | 84 | 92 | 106 | 118 | 155 | 184 | 244 |
| Rp | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| Item Code | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 | GM 052 |
Principle Features
- Taper Plug.
- Non-lubricated type.
- Suitable for low metering applications.
- Screwed female BSP parallel threads to BS21 / IS:554.
PRESSURE RATING: PN-6
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 9 BAR (g) | 6.6 BAR (g) |
END CONNECTION
- Screwed female BSP parallel threads to BS21 / IS:554.
- Taper Threads available only upon request.
UTILISATION & SERVICE
- “LEADER” Gun Metal Gland Cocks are suitable for above-ground installations.
- Best suited for hot & cold water, Oils neutral liquids etc.
WORKING PRESSURE
- Maximum Working Pressure: 6 Bar.

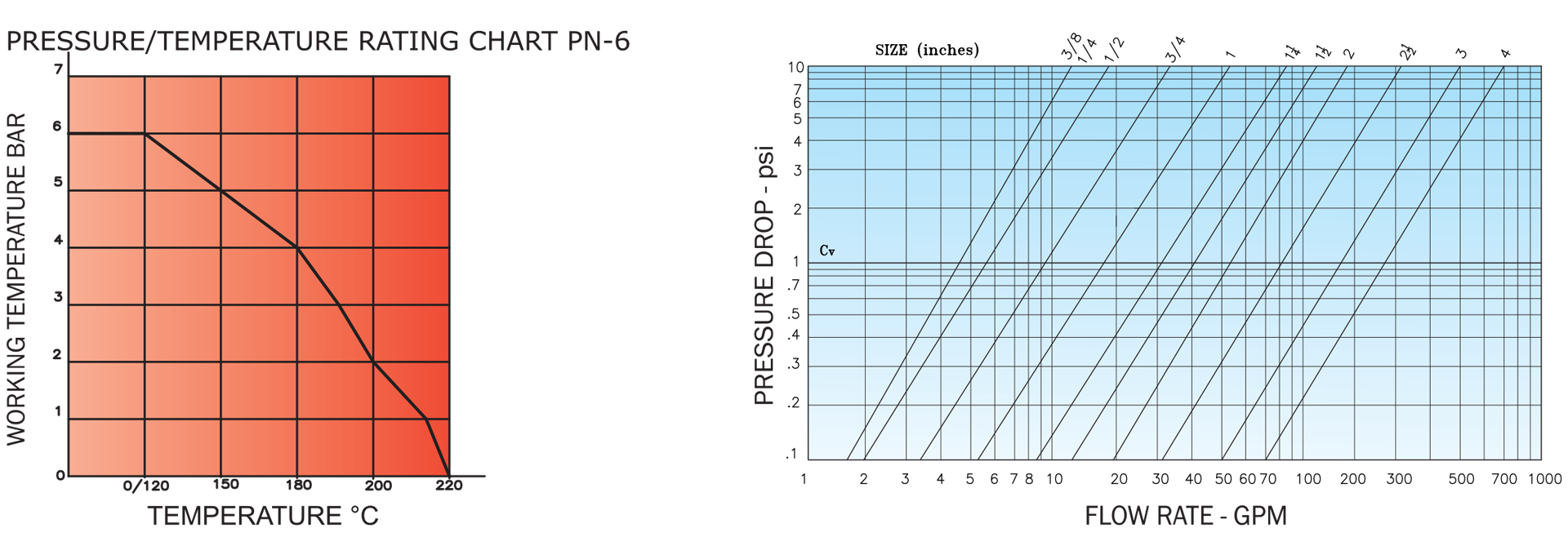

- See Pressure/Temperature Diagram.
TEMPERATURE LIMITS
- Maximum working temperature: 225°C.
- See Pressure / Temperature Diagram.
- Maximum working pressure(Steam): 6 Bar at 100°C.
